Real-Time Indoor Navigation App using React Native (Wi-Fi + UWB)

Nov 19, 2025 |

14 minutes read

IndoorNav: Real-Time Indoor Navigation App

This project develops a React Native mobile application that offers real-time indoor navigation for complex structures, including malls, airports, hospitals, and office buildings. The app uses Wi-Fi-based positioning (RSSI fingerprinting and, where supported, Wi-Fi RTT / IEEE 802.11mc) and optionally UWB (Ultra-Wideband) for higher precision. The app provides floor selection, turn-by-turn navigation, live pathfinding, and notifications.

Problem Statement
GPS signals are weak or unavailable indoors. This app fills that gap by using Wi-Fi access points and UWB anchors (if available) to calculate accurate indoor positions and deliver robust navigation experiences.

Feature	Description
Live User Location	Real-time positioning using Wi-Fi fingerprinting / RTT, optionally fused with UWB.
Floor Selection	Switch between floors for multi-level navigation.
Pathfinding	Shortest/optimal route calculation using graph algorithms
Turn-by-Turn Directions	Step-by-step guidance with visual cues and optional voice prompts
Indoor Map Display	Interactive map showing layout, stairs, elevators, and POIs
Notifications	Alerts when approaching the destination or deviating off-route.

Technology Stack

Layer / Technology

Frontend: React Native
State Management: Redux / Context API
Wi-Fi Positioning:
- RSSI fingerprinting (custom implementation)
- Wi-Fi RTT (IEEE 802.11mc) where device & AP support it
- Libraries: native Android APIs (and a React Native bridge); react-native-wifi-reborn (for scanning metadata) as a helper (Android/iOS restrictions apply).

UWB Integration (optional): Native bridge for UWB measurements / Android UWB APIs or vendor SDKs
Indoor Map: SVG (react-native-svg) or Mapbox / custom canvas overlay
Pathfinding Algorithm: A* or Dijkstra’s algorithm
Backend: Node.js + Express (optional — for fingerprint DB management, analytics)
Database: Firebase / MongoDB (for fingerprint maps, floor plans, anchor configs)

Real-Time Indoor Navigation App using React Native

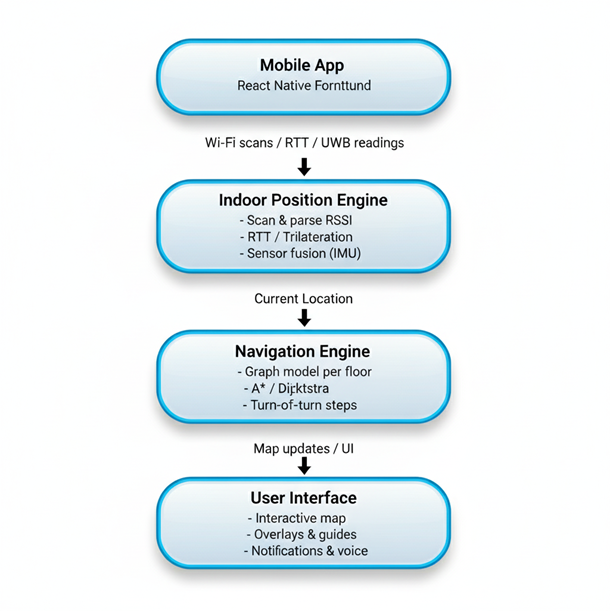

System Architecture 5. Implementation Steps

Step 1 — Project Setup

Initialize: npx react-native init IndoorNavigationApp.
Install react-navigation and preferred state manager (Redux or Context).
Add TypeScript if desired for stronger typing.

Step 2 — Wi-Fi Positioning Strategy

Choose one or combine multiple strategies depending on precision needs:

RSSI Fingerprinting

Perform a site survey: record Wi-Fi scans at known coordinates and build a fingerprint database (AP BSSID → RSSI vector per coordinate).
On device: perform scan, compute similarity (k-NN, weighted Euclidean) to find best match and estimate coordinates.
Maintain a map of floor plans aligned to fingerprint coordinates.

Wi-Fi RTT (IEEE 802.11mc) — if available

Use RTT to measure round-trip time to compatible APs and compute distances.
Trilateration across 3+ APs yields meter-level accuracy.
RTT requires device & AP support and platform-specific native APIs (Android has RTT APIs).

Sensor Fusion

Fuse Wi-Fi position with IMU (accelerometer/gyroscope) dead-reckoning to smooth movement and handle scan gaps.
Optionally fuse UWB measurements (if available) using a Kalman filter.

Implementation notes

On Android, scanning & RTT require runtime permissions and background restrictions awareness.
On iOS, Wi-Fi scanning is limited; consider custom enterprise approaches or rely on UWB / other sensors.

Step 3 — Indoor Mapping

Convert floor plans into SVG or JSON tile maps.
Define anchor nodes (rooms, intersections) and map coordinates to fingerprint positions.
Implement a coordinate transform between the fingerprint coordinate system and SVG/map pixels.

Step 4 — Build Graph & Pathfinding

Model floors as graphs: nodes = POIs/corners, edges = walkable segments with weights.
Use A* for efficient pathfinding; heuristics can be Euclidean distance.
Keep separate graphs per floor and add elevator/stair edges connecting floors.

Step 5 — UI & Navigation

Show user dot overlay and route polyline on the map.
Implement a floor switcher for multi-level buildings.
Generate turn-by-turn instructions by converting path edges into human-readable steps.
Add voice guidance (Text-to-Speech) for accessibility.

Step 6 — Real-Time Updates

Continuously scan Wi-Fi at controlled intervals (trade-off accuracy vs battery).
Update position and animate user movement on the map.
Detect deviations and recompute the route when off-path.

Step 7 — Optimization & Scale

Reduce scanning frequency when stationary.
Cache fingerprint results and map tiles locally.
Use a backend to manage the fingerprint DB and to push updates if APs change.

Challenges & Solutions

Challenge	Solution Approach
Wi-Fi variability (RSSI noise)	Use fingerprinting with many samples, smoothing filters, and sensor fusion.
Device / AP compatibility (RTT)	Detect RTT support, fallback to fingerprinting when unavailable.
Battery drain from frequent scanning	Adaptive scanning (more frequent while moving), batching scans, and lower power modes.
Mapping & alignment	Calibrate coordinate transforms during site survey; use anchor points (beacons/UWB) for alignment.
Multi-floor transitions	Maintain a graph per floor; treat stairs/elevators as special edges and handle floor changes smoothly.

Future Enhancements

AR overlay (ARKit/ARCore) for visual wayfinding.
Indoor positioning calibration tools to make fingerprint collection faster.
Integration with shopping/advertising platforms for location-based offers.
Historical analytics and heatmaps of footfall.
A hybrid approach that automatically chooses Wi-Fi, UWB, or IMU based on availability.

Example Code Snippets (conceptual)

React Native — perform Wi-Fi scan (conceptual):

Note: many devices/platforms restrict Wi-Fi scan access; implement native modules and request permissions.


// Pseudocode (conceptual)
import { NativeModules } from 'react-native';
const { WifiScanner } = NativeModules;

// returns array of { bssid, ssid, rssi }
const performScan = async () => {
  const result = await WifiScanner.scan();
  return result;
};

Simple fingerprint matching (conceptual):


function matchFingerprint(scanVector, fingerprintDB) {
  // scanVector: {bssid: rssi, ...}
  // fingerprintDB: [{x,y,vector: {bssid: rssi}}, ...]
  // use weighted Euclidean or cosine similarity
  let best = null;
  let bestScore = Infinity;
  for (const fp of fingerprintDB) {
    let score = 0;
    // compare common BSSIDs
    for (const b of Object.keys(fp.vector)) {
      const a = scanVector[b] ?? -100;
      const diff = (a - fp.vector[b]);
      score += diff * diff;
    }
    if (score < bestScore) { bestScore = score; best = fp; }
  }
  return best; // best.x, best.y estimate
}

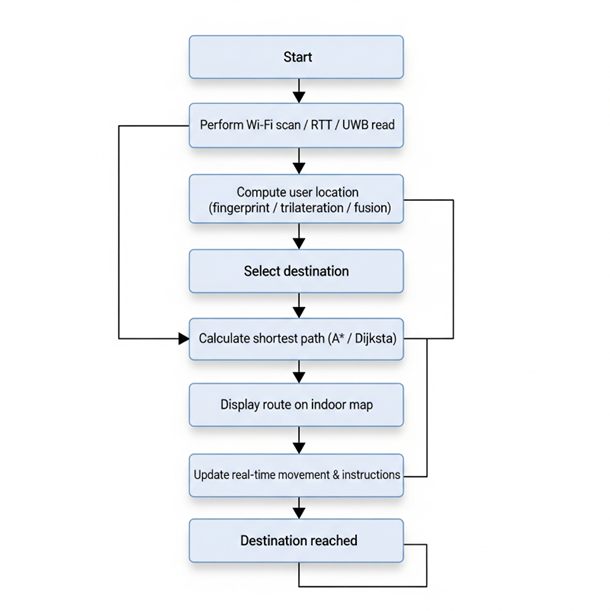

9. Indoor Navigation Flow (revised)

Next Steps I can help with

Produce a mock architecture diagram (SVG / PNG) and an example SVG floor map with anchor points.
Generate a sample fingerprinting CSV schema and a small tool script to capture survey data.
Create a small React Native example (with a native module stub) showing Wi-Fi scan → fingerprint match → map update.

React Native Indoor Navigation with Wi-Fi & UWB Tech

The Way Forward

Building a React Native real-time indoor navigation app that leverages Wi-Fi indoor positioning, Wi-Fi RTT, and optional UWB technology provides a practical solution to the limitations of GPS indoors. By combining precise positioning, interactive indoor maps, and turn-by-turn guidance, such an app enhances user experience in complex environments like malls, airports, and offices. With careful implementation of fingerprinting, sensor fusion, and multi-floor pathfinding, businesses can offer reliable mobile indoor navigation apps that are both accurate and scalable.
