Leveraging Azure for High-Performance, Full-Stack Deployments

When you think of deploying a full-stack application to the cloud, it sounds straightforward — spin up some services, push some code, and you’re done. But in real-world production, things are never that linear. We recently architected and deployed a cloud-native application using Microsoft Azure as part of our broader full stack development services, and this blog is all about what we did, why we did it, and what we learned along the way. This wasn’t about just hosting code — it was about building something scalable, secure, and automated from end to end.

Walkthrough of Application Workflow and Technology

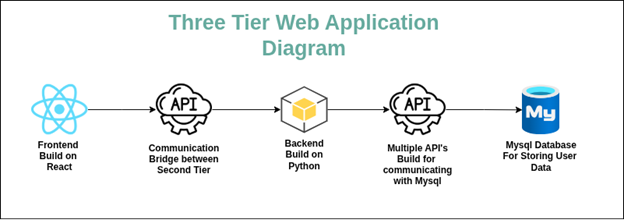

This diagram represents a three-tier architecture commonly used in modern full-stack applications:

• Frontend (React): The user interface is built using React, allowing dynamic and responsive user experiences.
• API Layer: Acts as a bridge between the frontend and backend, sending and receiving data securely.
• Backend (Python): Handles business logic and data processing. It communicates with the database via multiple APIs.
• MySQL Database: Stores user information and application data securely.

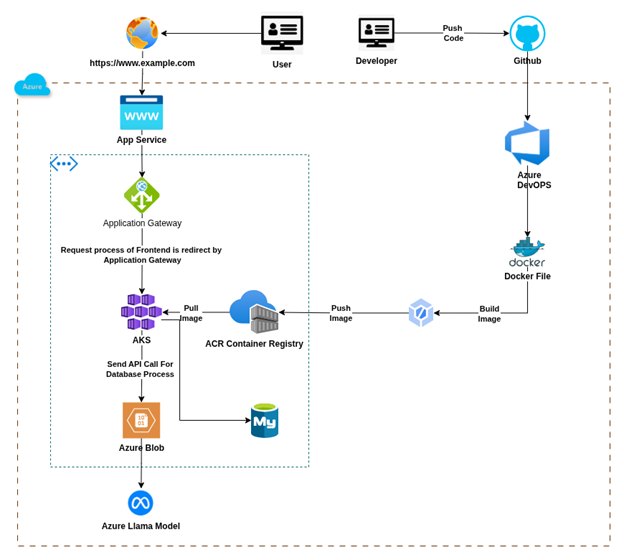

 Azure Full-Stack AI-Powered Deployment Architecture

• User Interaction:- Users access the frontend hosted via Azure App Service, routed securely through an Application Gateway.
• AKS (Azure Kubernetes Service):- Hosts the backend services in containers, pulling images from Azure Container Registry (ACR).
• Azure DevOps CI/CD:- Developers push code to GitHub, triggering Azure DevOps pipelines. Docker images are built and pushed to ACR.
• Data & AI Integration:- Backend services send API calls to the AI model for a response sent to the database through the backend API.

Frontend on Azure App Service

For our React frontend, we went with Azure App Service — a fully managed platform that takes care of scaling and uptime.

Benefits:

• Auto-scaling without server management.
• Easy CI/CD integration.
• Deployed on a private subnet for security.

The frontend talked to the backend using a custom domain over HTTPS, routed smartly via Application Gateway.

Secure Routing with Azure Application Gateway

We integrated Azure Application Gateway to manage incoming traffic and improve performance. It did more than just route requests:

• SSL termination (handled by HTTPS).
• WAF (Web Application Firewall) for security.
• Path-based routing (e.g., /api/ to AKS, / to App Service).
• This approach gave us centralized control over traffic and reduced load on internal services.

Starting with a clear Foundation: Virtual Networks (VNet)

Before touching a single line of deployment code, we focused on networking. In Azure, VNet is the backbone of secure communication between resources. We set up a well-structured VNet with subnets for our AKS, App Service, and other critical resources.

Lesson: Skipping VNet design early can lead to later headaches with access control and security rules.

Deploying the Backend on Azure Kubernetes Service (AKS)

The backend of our app was written in Python and designed to handle API-heavy workloads. Kubernetes was the obvious choice, and Azure Kubernetes Service (AKS) gave us a managed environment with seamless integration.

Strategic Insights from Our Implementation

• Autoscaling saved us during unexpected load spikes:- We tested this with load testing tools.
• Managed Identities:- Let us avoid hardcoding credentials when our backend needs access to storage or secrets.

We had to fine-tune node pools to optimize for cost vs performance (initially overprovisioned, later adjusted).

Bonus: Using Helm charts made our app deployments consistent and repeatable.

Using Storage Accounts for Assets & Logs

Every application needs a place to store files, logs, and backups. Azure Storage Account gave us a reliable way to manage all static content and important logs in one place, accessible from both the frontend and the backend.

Managed Identities: Secretless but Secure

Security is a top concern. We used Azure Managed Identities to securely connect our services without storing any sensitive credentials.

It’s like giving each service a trusted badge so they can access what they need without any passwords floating around.

Integrating an AI Model (Laama)

We took it a step further by integrating a language understanding model (Laama) to provide intelligent responses and personalization. It helped make the app smarter and more interactive, a key differentiator in today’s market.

Using Azure Database Services: Secure and Scalable Data Backbone

No full-stack app is complete without a solid, reliable database, and for us, Azure Database for MYSQL delivered exactly what we needed.

We used Azure’s managed database service to handle all our backend data storage. It gave us:

• Easy to set up and manage, no manual maintenance needed.
• Private and secure, only accessible from inside our Azure network.
• Automatic backups to protect our data.
• Scalable, so we could grow without downtime.

CI/CD: From Push to Production in One Click

We built a complete CI/CD pipeline using Azure DevOps. It handled:

• Code build and testing.
• Containerization of the backend using Docker.
• Deployment to AKS (via Helm).
• Deployment of the frontend to App Service.
• DNS updates, environment variable injection, etc.

What we loved:

• Secrets were pulled securely using Key Vault and linked via pipeline variables.
• Rollback was easy — just redeploy a previous pipeline stage.
• No manual steps — infra + app all deployed in minutes.

Real-World Example: Building a Modular Dashboard

Consider a dashboard application with various widgets, like charts, tables, and notifications. Using standalone components combined with Angular’s flexible DI system, you can structure this dashboard in a clean, maintainable way:

1. Each widget is a standalone component with its template, logic, and scoped dependencies.
2. Shared services (e.g., data fetching or state management) can be provided globally or locally depending on need.
3. Lazy loading is seamless—widgets can be routed or dynamically loaded as needed.
4. Testing becomes easier since widgets are isolated and self-contained, requiring minimal setup.
5. Providers defined inside widgets ensure isolated service scopes, avoiding unintended side effects.
6. Explicit imports and providers make dependencies transparent, aiding debugging and static analysis.

This results in a scalable, performant dashboard that’s easy to extend, test, and maintain as your application grows.

Getting Started Tips

• Update your Angular CLI to the latest version.

           Ex: ng update @angular/cli @angular/core

• Start creating standalone components by adding standalone: true in the component decorator.

           Ex: ng generate component widget –standalone
            @Component({
            selector: ‘app-widget’,
            standalone: true,
            imports: [CommonModule, FormsModule],
            templateUrl: ‘./widget.component.html’,
            styleUrls: [‘./widget.component.css’],
            })
            export class WidgetComponent {}

• Use the new imports array inside the component decorator to import dependencies.
• Inject services as usual via constructors.

          Ex: constructor(private dataService: DataService) {}

• Explore lazy loading components with the router’s loadComponent method.

Ex:{
path: ‘analytics’,
loadComponent:()=>import(‘./analytics.component’).then(m=>
m.AnalyticsComponent),
}
