Dropzone for Vue.js: Multi-File Upload with Real-Time Multi-Step Progress

Mar 25, 2025 |

8 minutes read

Dropzone for Vue.js Multi-File Upload withReal-Time Multi-StepProgress

Introduction Vue.js Processing

In interactive web applications, especially large and complicated file processing like PDFs, open feedback at every step of file processing needs to be supplied on time. Natural, smooth usability demands access to such behind-the-scenes operations. With the addition of Dropzone and real-time data processing via WebSockets and custom UI components in Vue.js, developers can apply smooth, natural solutions to the most involved multi-file and multi-step processes.

Dropzone is an easy JavaScript file upload library made simpler by offering:

Single or multiple file upload
Drag-and-drop support
Automatic file preview image generation through drag-and-drop
Integrated progress bar
Reasonable validation functionality
Easy customization functionality

Problem Learning

The client project also had very strict requirements, in addition to regular file upload capability:

Bulk upload PDFs
Show real-time progress of all the files through three phases of processing:
PDF Uploading
PDF Page Breaking
Image Rendering from PDF Pages
Develop a highly responsive UI to show all these phases for all the files in real-time.
Provide drag-and-drop file selection as well as manual uploading.
Manage and show simultaneous progress indicators for several files processed simultaneously.

Offer immediate feedback and information to the user in real-time instead of guessing or keeping them in suspense for too long with nothing displayed.

Overcoming Challenges of Vue.js

Custom UI Needs:
The client required a UI much more sophisticated than the typical Dropzone appearance. It had to be branded, multi-stage visual progress indicators, and per-file detail views.
Multi-Stage Progress Tracing:
Default Dropzone provides only upload with progress. The client needed to see the progress for the following server-side activities (image creation and page splitting) for each file.
Real-Time Status Updates:
Real-time updates, as true back-to-front two-way feedback, were needed per process per file.
Parallel Processing:
The application needed to have multiple upload and processing actions run and viewable side-by-side concurrently and not with UI lag and confusion.
Background Task Feedback:
Operations such as image rendering and PDF page breaking would be slow; rendering these not to provide perceived latency was having clear real-time UI status indicators.

How We Solving the Problem of Vue.js

A) Dropzone Integration

We have used Dropzone within our Vue.js development project to provide single-file uploading and multi-uploading with minimum configuration. Multiple uploads happening together, drag-and-drop features, and the inbuilt auto-file previews were just some of the amazing out-of-the-box capabilities that Dropzone provided on its first day out.

Major configs used:

Parallel uploads: Provided multiple uploads together.
File type filtering: Confined to.pdf file uploads and validation on file size.
Visual feedback: Employed auto-thumbnail previews and default progress indicators as a landmark.

B) Multi-Stage Progress Management

The whole process was divided into three stages:

PDF Uploading: File upload to the server for the first time.
PDF Page Splitting: Server-side background job to split each PDF into pages.
Image Generation: Generation of individual images out of the previously split-up pages.

The progress of every phase was graphically shown with per-file progress bars.

C) Real-Time Updates Using WebSockets

All the long-pending operations were done asynchronously on the server.
The server broadcasts the real-time status of each stage and file via WebSocket events.
The front end was listening to those WebSocket events and dynamically updating the UI based on per-stage complete, success, or failure status.

D) Custom Vue.js Component and UI Design

We used a bespoke Vue.js Dropzone wrapper component to enclose all processing and upload functionality.

UI was done with the Vue.js
Card layout for the uploaded file
Individual progress indicators per step of processing
Visual success/failure icons and alert text
Brand-approved responsive colours and styling
This feature is reused and deployed on pages without having duplicated code.

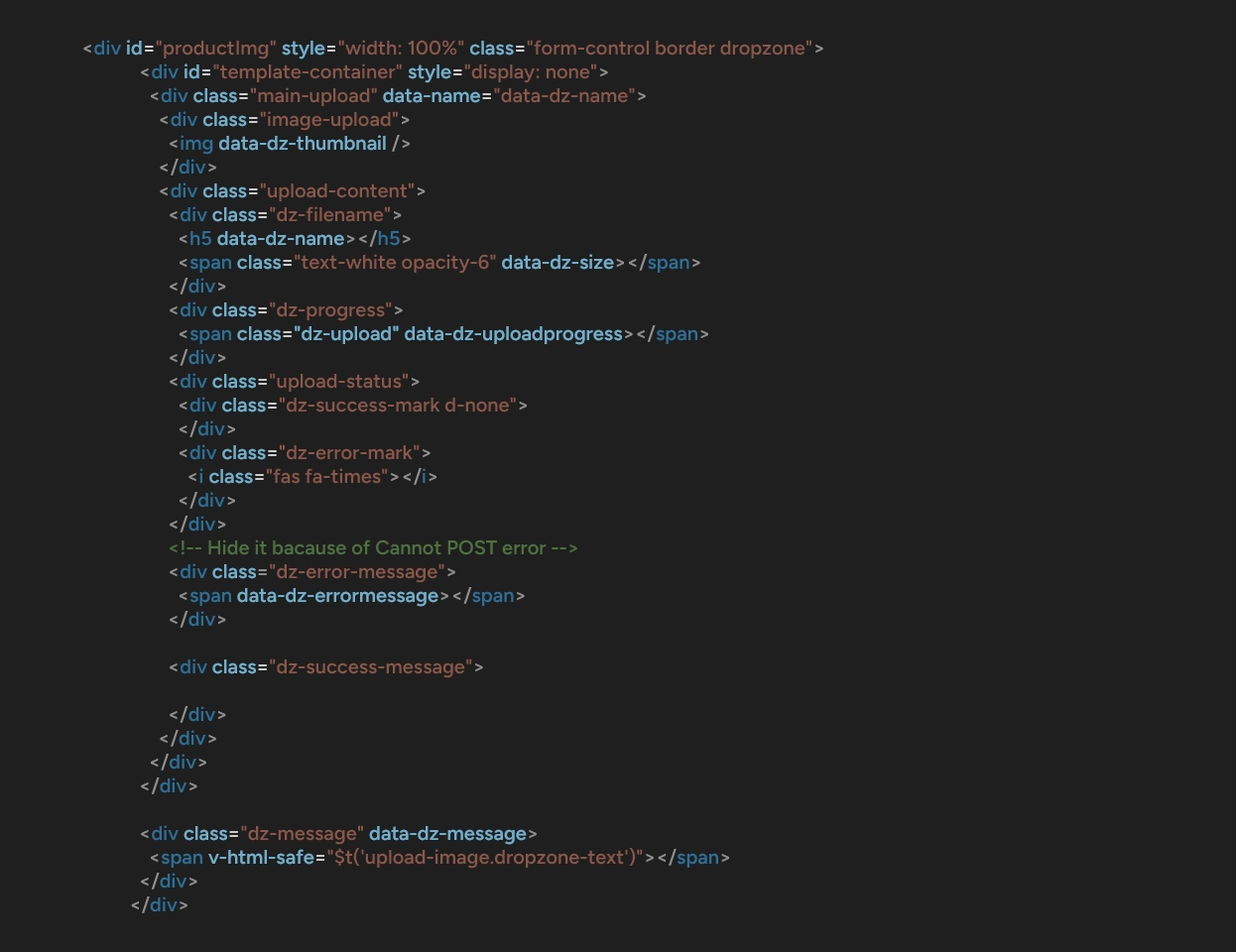

A) Dropzone HTML code

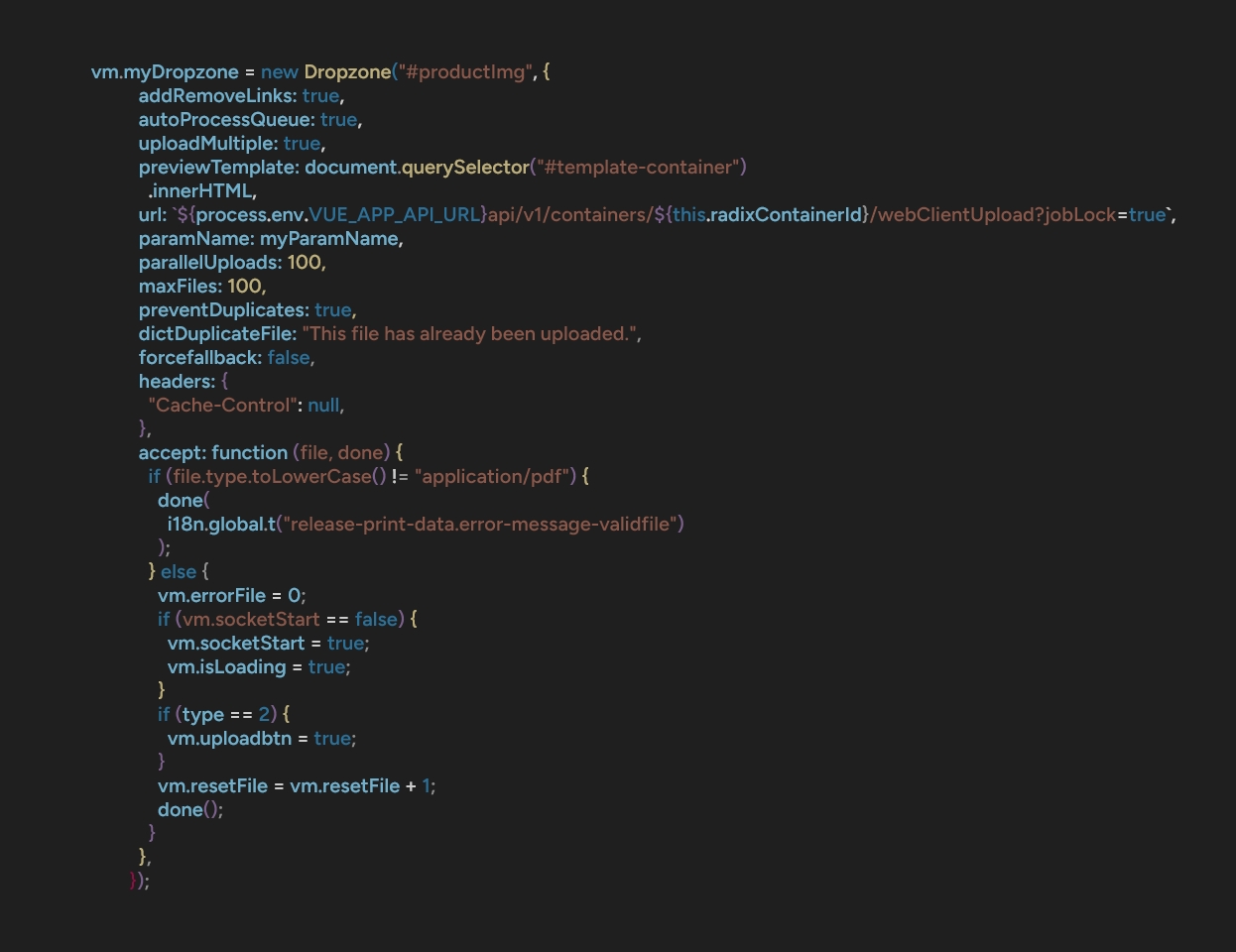

B) Dropzone Vue.js code

C) UI

Dropzone Implementation Example

A) HTML Structure of Dropzone
B) Example of Vue.js Component
C) Example UI (Optional Screenshot)

Scalability and Performance Best Practices

Single WebSocket Connection: Use one long-lived WebSocket connection to eliminate many duplicate listeners and prevent unnecessary overhead.
Centralized Dropzone Component: Make use of one reusable Vue.js component across pages for consistency and ease of maintenance.
UI Update Throttling: Employ throttling or UI update debouncing to prevent rendering bottlenecks, especially for high-speed WebSocket events.
Parallel Upload Management: Limit multiple uploads to within sensible quantities (e.g., 2-3 files at once) to try not to clog server and browser resources.
Strong Validation and Error Feedback: Send correct user notifications on errors (unsupported file type, crossed file size limit) through custom notifications or in-line messages.
Backend Optimization: Async up server-side operations with correct resource pooling and load balancing wherever necessary.

Smooth Real-Time File Processing with Vue.js
